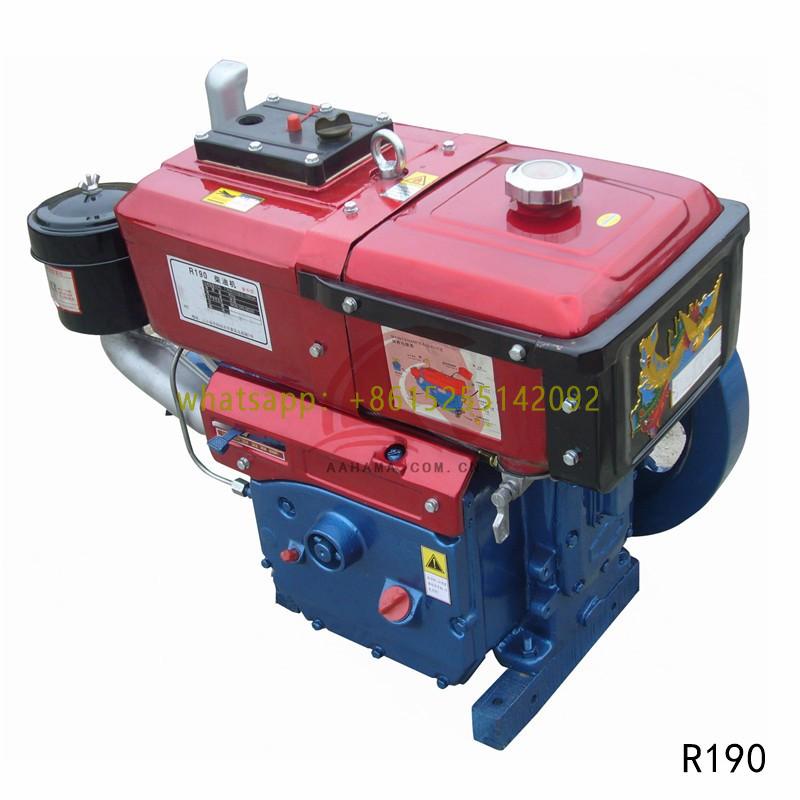

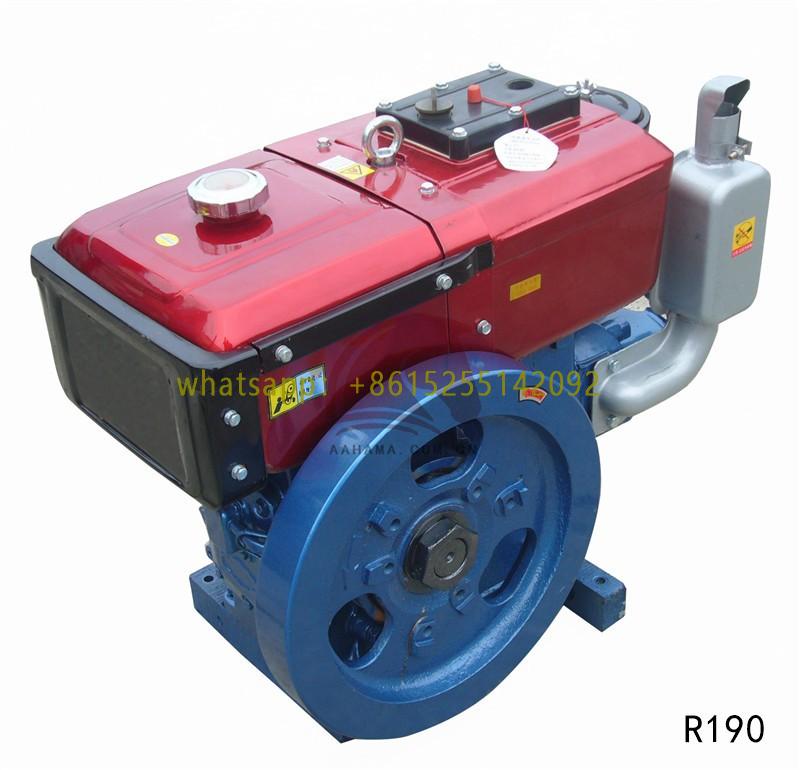

9.5Hp Water Cooled Diesel Engine R190

Model: R190
Water cool diesel engine
Power: 9.5Hp

EMAIL

Parameter	Value
Engine Type	Single-cylinder, Horizontal, 4-cycle
Combustion System	Precombustion or Swirl Chamber
Bore x Stroke	90 mm x 90 mm
Total Displacement	573 cc (0.573 L)
Compression Ratio	Typically 17:1 to 21:1
Rated Power Output	7 kW to 8.08 kW (approx. 9.5–10.5 HP)
Rated Speed	2,200 to 2,400 RPM
Max Torque	~25 Nm at 1600–2000 RPM (High-spec variants reach 114 Nm)
Fuel Consumption	≤ 275 g/kW·h
Cooling Method	Evaporative (Hopper), Condensation, or Radiator
Starting Method	Hand Cranking or Electric Start
